description drawings diagrams technical data:

FVE/200-400


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s		H
m		η
%		P
kW		D2
mm
FVE/200-400

119

38

67

90

380

175

31

75

211

23

70

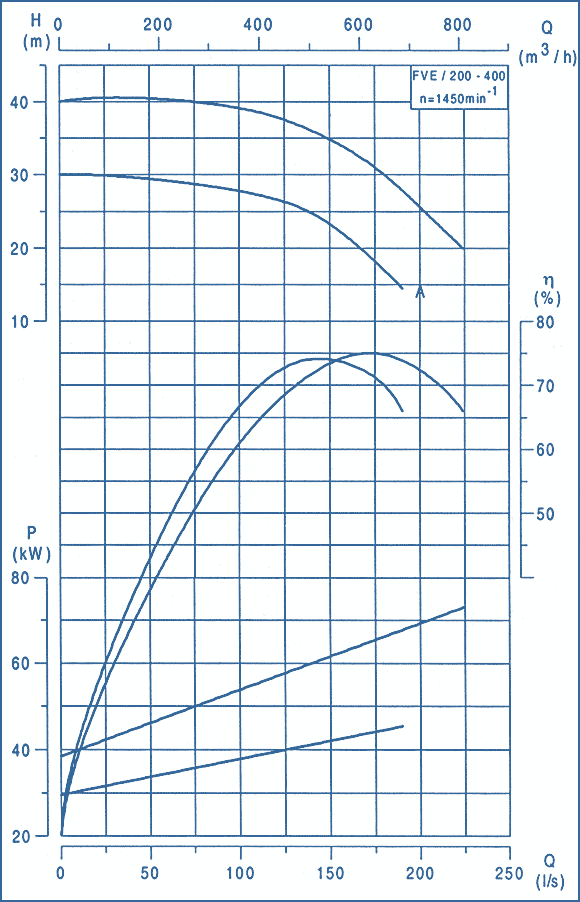

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

HA

HB

E

M

s

a

Ds

Dd

Pump mass, kg

Unit mass, kg

FVE/200-400

90

2665

1165

360

450

650

445

400

22

8

300

200

697

1270


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
