description drawings diagrams technical data:

FVE/125-315A

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FVE/125-315A	40	24	57	30	290
	60	21,5	71
	75	18	70

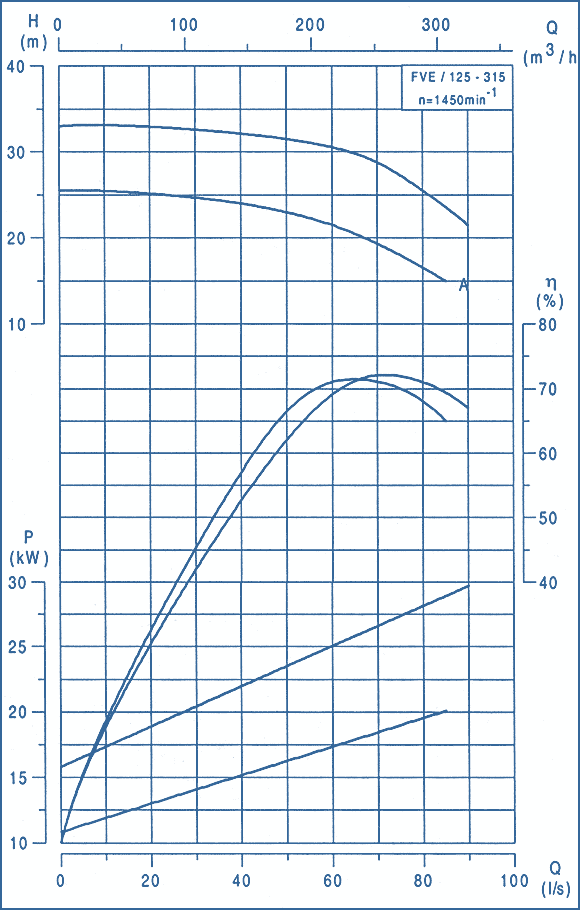

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type	P, kW	LA	LB	LC	HA	HB	E	M	s	a	Ds	Dd	Pump mass, kg	Unit mass, kg
FVE/125-315A	30	1523	865	300	355	480	600	480	22	6	200	125	349	610

Flange Dimensions According to BSS EN 1092-2

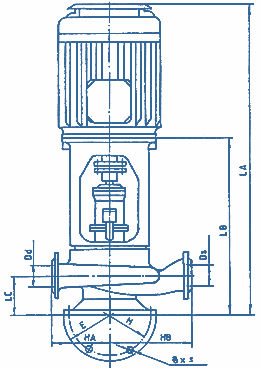

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
