K/200-400
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | K/200-400 | 119,4 | 36 | 68 | 4 | 75 | 379 | 175 | 30 | 78 | 5 | 211,1 | 24 | 74 | 6,5 |

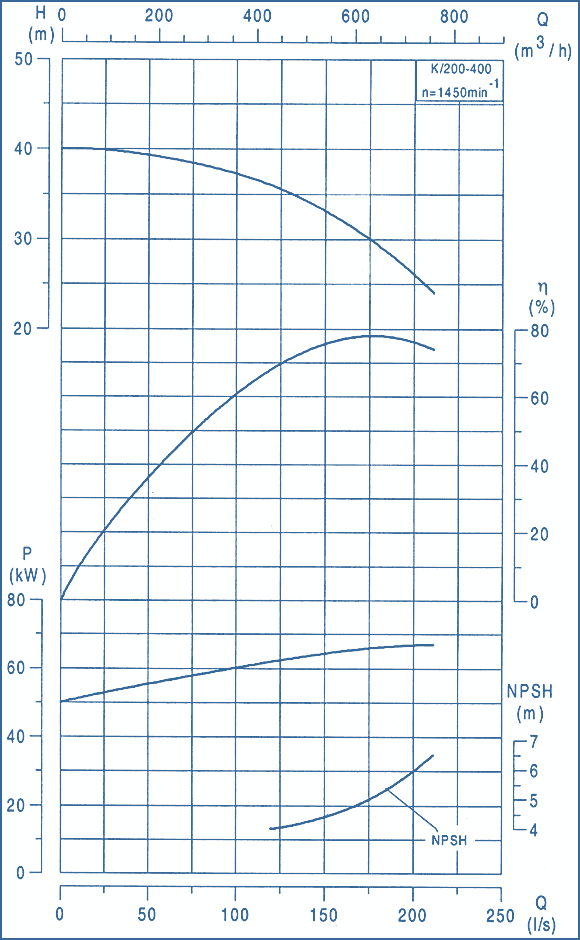

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/200-400 | 75 | 2078 | 1088 | 360 | 450 | 650 | 660 | 620 | 22 | 994 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
