K/150-315
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | K/150-315 | 89 | 33 | 75 | 1,5 | 55 | 342 | 111,1 | 30 | 78 | 4 | 130 | 24 | 73 | 7 |

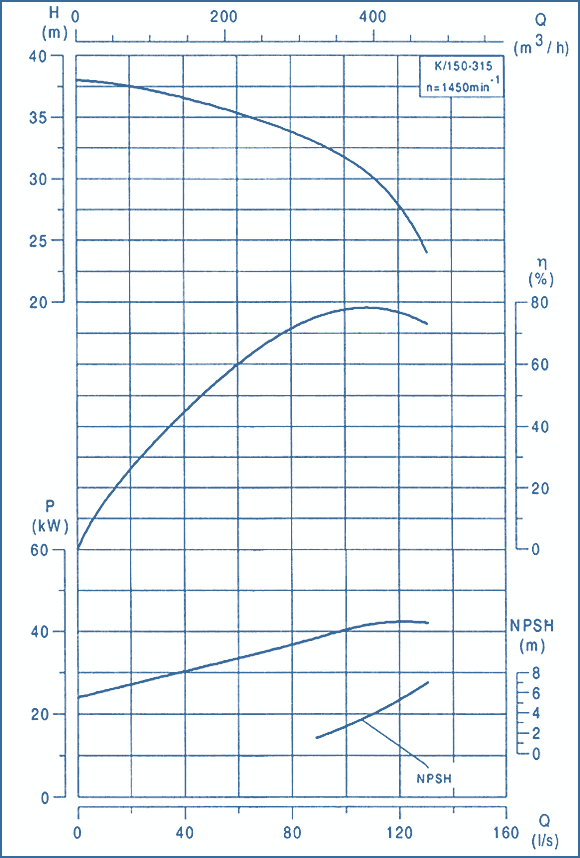

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/150-315 | 55 | 1631 | 905 | 303 | 400 | 500 | 600 | 540 | 22 | 850 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
