K/125-315
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | K/125-315 | 50 | 32 | 69 | 3 | 45 | 342 | 69,5 | 30 | 75 | 4 | 89 | 23 | 69 | 5 |

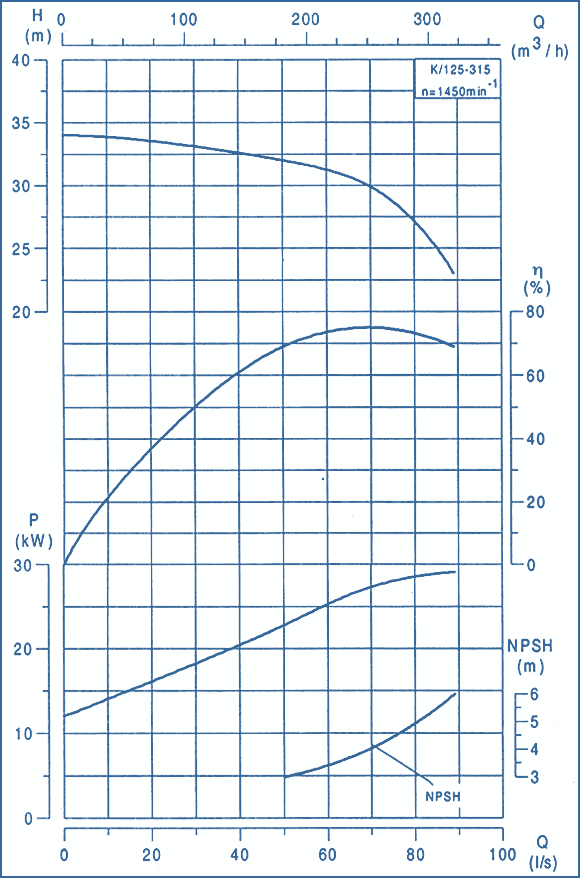

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/125-315 | 45 | 1552 | 865 | 300 | 355 | 480 | 600 | 540 | 22 | 740 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
