Pumps of Bulgaria - enterprise VIPOM JSC -

pumps

description drawings diagrams technical data:

20SH40A

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
20SH40A	13,8	35	46	22	350
	20	34	53
	30	29	52

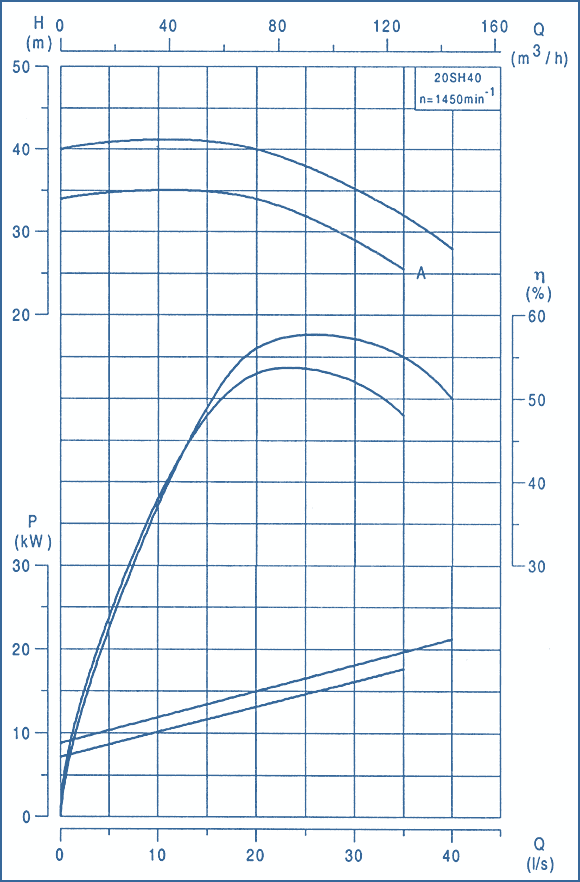

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	BA	BB	BC	BD	BE	HA	HB	HC	a	Unit mass, kg
22	1602	175	1070	250	323	235	465	413	690	400	638	18	460

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
