50EG32
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW | D2
mm |
| 50EG32 | 32 | 34 | 67 | 30 | 320 | 50 | 32 | 74 | 70 | 25 | 68 |

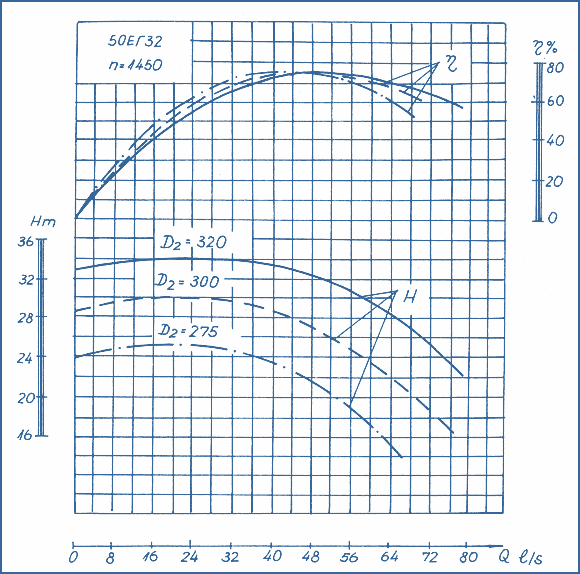

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | BA | BB | BC | BD | BE | HA | HB | HC | Pump mass, kg | Unit mass, kg | Bearing Body | 50EG32 | 30 | 1514 | 161 | 957 | 225 | 303 | 200 | 300 | 410 | 615 | 320 | 600 | 143 | 409 | 4 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
