Vipom's pumps
pumps


25EG20


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
P
kW
D2
mm
25EG20

16

21

62

11

248

25

20

70

32

18

74

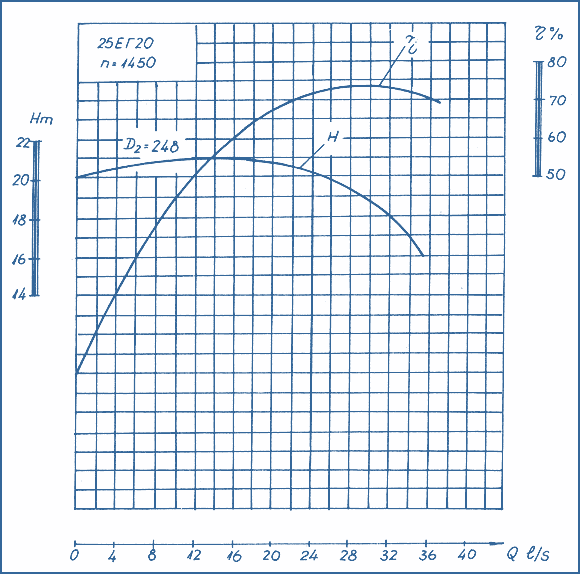

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

LA

LB

LD

BA

BB

BC

BD

BE

HA

HB

HC

Pump mass, kg

Unit mass, kg

Bearing Body

25EG20

11

1378

178

850

140

282

175

310

360

490

292

560

136

252

4




DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions

Flange Dimensions

overall and mounting dimensions
