25EG12
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW | D2
mm |
| 25EG12 | 15 | 14 | 65 | 5,5 | 215 | 25 | 12 | 75 | 32 | 8 | 65 |

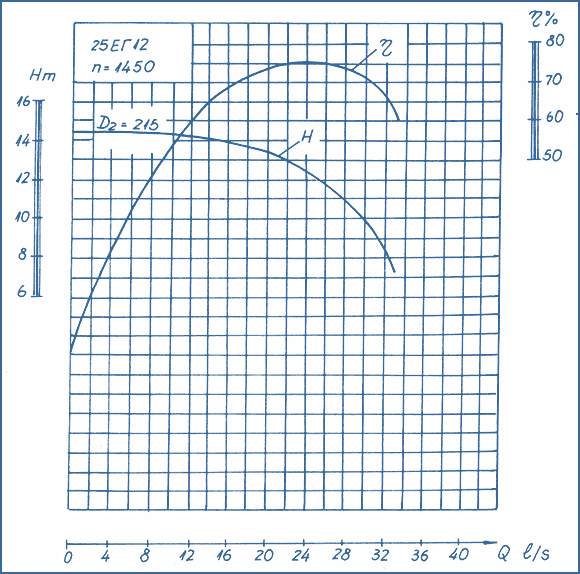

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | BA | BB | BC | BD | BE | HA | HB | HC | Pump mass, kg | Unit mass, kg | Bearing Body | 25EG12 | 5,5 | 1372 | 210 | 760 | 120 | 256 | 153 | 300 | 350 | 626 | 448 | 648 | 116 | 197 | 4 |

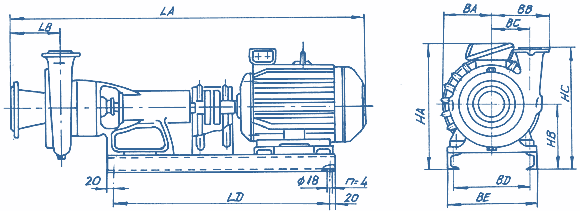

DIMENSIONAL DRAWING OF THE PUMP UNIT

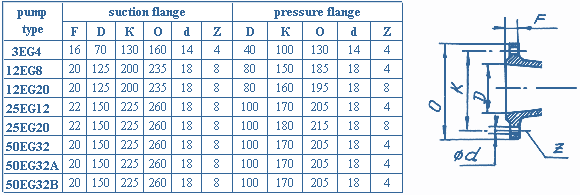

Flange Dimensions
|
|
|
