12EG20
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW | D2
mm |
| 12EG20 | 8 | 21 | 58 | 5,5 | 260 | 12 | 20 | 67 | 16 | 16 | 64 |

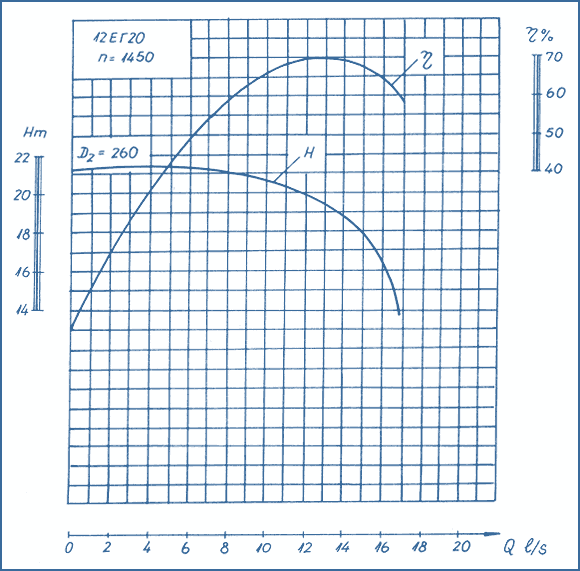

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | BA | BB | BC | BD | BE | HA | HB | HC | Pump mass, kg | Unit mass, kg | Bearing Body | 12EG20 | 5,5 | 1363 | 201 | 700 | 120 | 261 | 163 | 300 | 360 | 518 | 340 | 600 | 124 | 137 | 4 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
