3EG4
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW | D2
mm |
| 3EG4 | 1,5 | 5 | 43 | 0,55 | 129 | 3 | 4 | 56 | 4,5 | 2,5 | 45 |

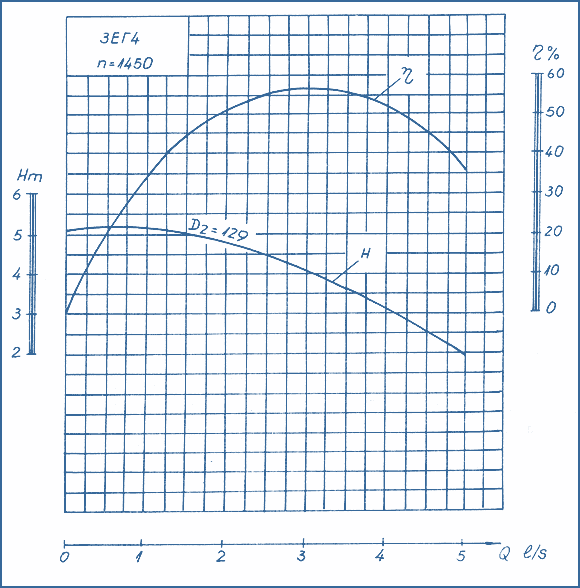

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | BA | BB | BC | BD | BE | HA | HB | HC | Pump mass, kg | Unit mass, kg | Bearing Body | 3EG4 | 0,55 | 757 | 110 | 480 | 74 | 145 | 80 | 170 | 205 | 314 | 205 | 320 | 29 | 53 | 1 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
