45MTR45.3
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% |
| 45MTR45.3 | 35 | 141 | 65 | 44,5 | 135 | 72 | 55 | 120 | 68 |

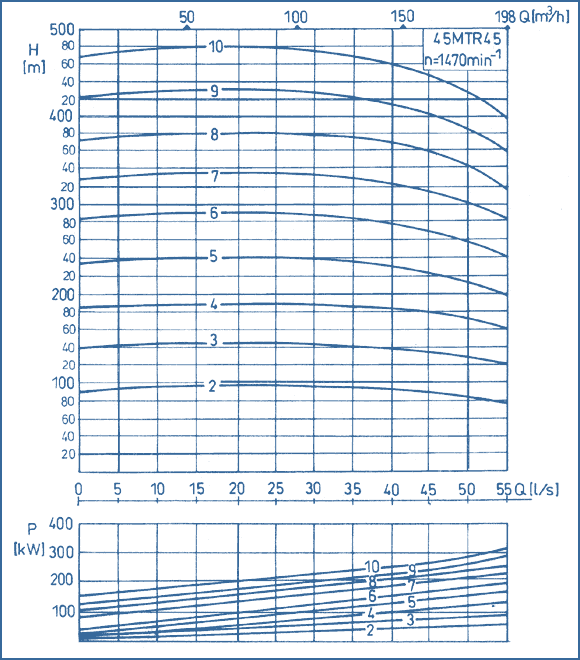

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | BA | BC | BD | BE | BF | G | HA | HB | D | К | О | d | Z | D | К | О | d | Z | Weight, kg | 45MTR45.3 | 1365 | 562 | 462 | 532 | 502 | 510 | 600 | 740 | 440 | 4 | 780 | 360 | 150 | 250 | 300 | 23 | 8 | 125 | 250 | 310 | 30 | 8 | 1108 |

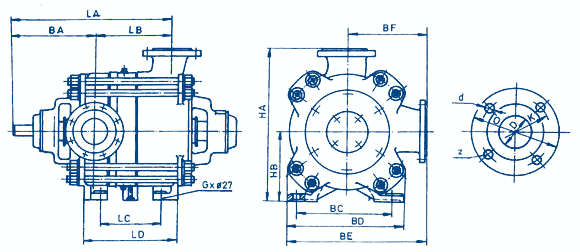

DIMENSIONAL DRAWING OF THE PUMP
|
|
