220D90A
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | D2
mm | | 220D90A | 155 | 86,5 | 72 | 500 | 215 | 80 | 78 | 285 | 67,5 | 76 |

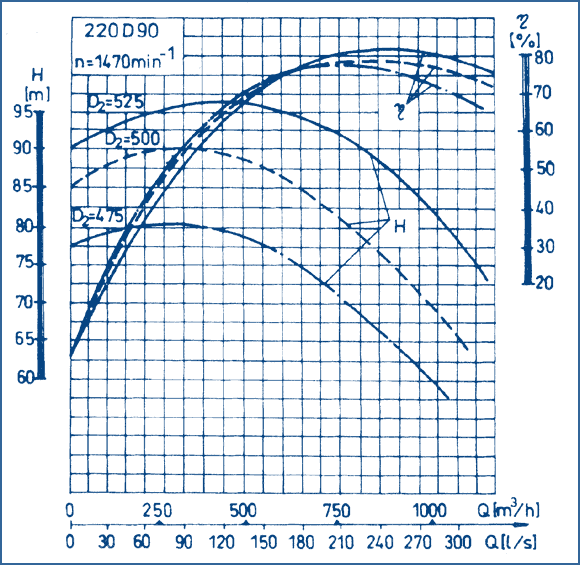

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | HA | HB | HC | HD | BA | BB | BC | BD | BE | BF | D | К | О | d | Z | D | К | О | d | Z | Weight, kg | 220D90A | 1060 | 470 | 915 | 540 | 380 | 265 | 580 | 620 | 1180 | 780 | 460 | 600 | 300 | 395 | 435 | 23 | 12 | 250 | 335 | 370 | 18 | 12 | 750 |

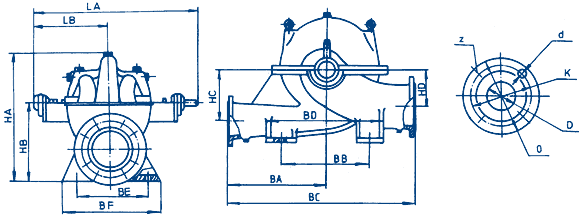

DIMENSIONAL DRAWING OF THE PUMP
|
|
