220D36
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | D2
mm | | 220D36 | 160 | 41 | 75 | 360 | 220 | 36 | 84 | 285 | 27,5 | 78 |

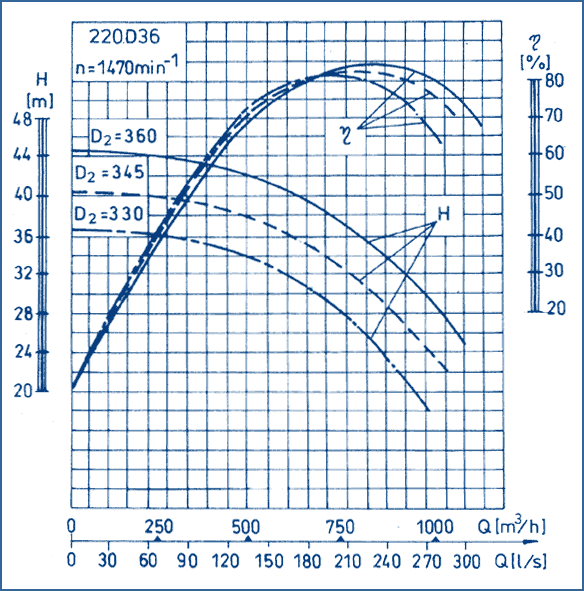

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | HA | HB | HC | HD | BA | BB | BC | BD | BE | BF | D | К | О | d | Z | D | К | О | d | Z | Weight, kg | 220D36 | 965 | 445 | 720 | 470 | 290 | 265 | 350 | 475 | 950 | 625 | 320 | 440 | 300 | 395 | 435 | 18 | 12 | 250 | 335 | 370 | 18 | 12 | 583 |
DIMENSIONAL DRAWING OF THE PUMP
|
|
