140Е40
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 140Е40 | 110 | 41 | 75 | 3,5 | 75 | 370 | 140 | 38 | 79 | 4 | 170 | 31 | 75 | 5 |

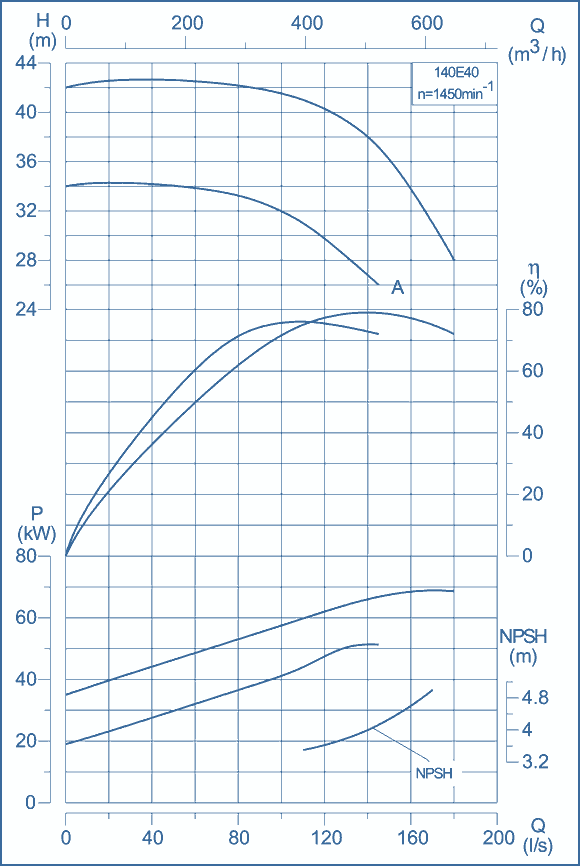

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | ВС | BD | BE | НА | НВ | а | Ds | Dd | d | s | t | Weight, kg | 976 | 216 | 390 | 310 | 227 | 290 | 411 | 266 | 400 | 340 | 685 | 280 | 22 | 250 | 175 | 500 | 14 | 54 | 250 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 1500 | 75 | 2025 | 216 | 1355 | 290 | 325 | 250 | 580 | 530 | 286 | 426 | 776 | 22 | 798 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
