E - B/150 -250
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | E - B/150 -250 | 69,5 | 18 | 72 | 2,4 | 22 | 265 | 100 | 15 | 79 | 2,7 | 122 | 12 | 77 | 3,4 |

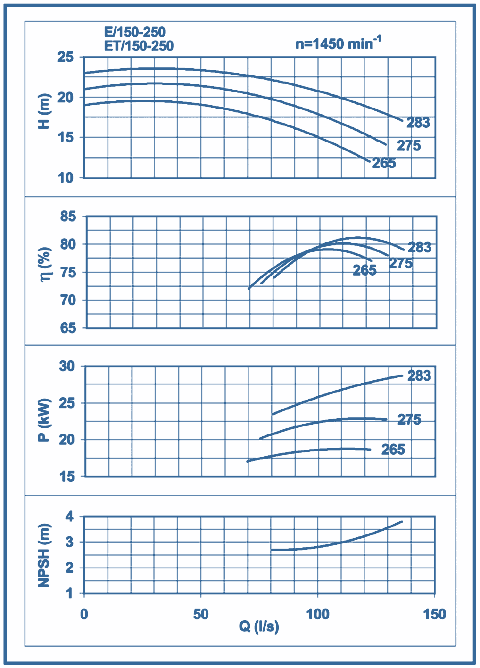

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 22 | 1519 | 160 | 485 | 140 | 1236 | 346 | 470 | 520 | 660 | 390 | 745 | 18 | 200 | 150 | 154 | 464 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
