100Е50
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 100Е50 | 70 | 53 | 75 | 3 | 75 | 388 | 100 | 50 | 81 | 4 | 120 | 45 | 77 | 5 |

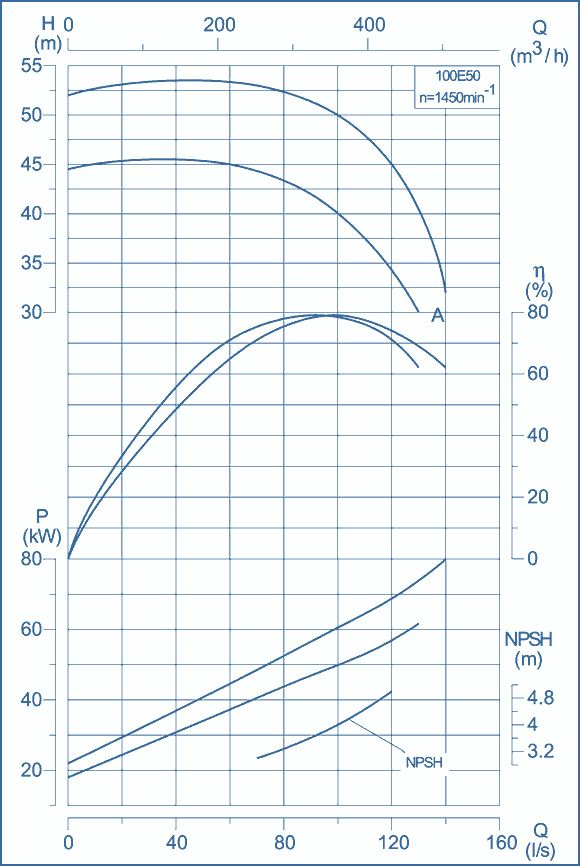

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | ВС | BD | BE | НА | НВ | а | Ds | Dd | d | s | t | Weight, kg | 942 | 218 | 390 | 310 | 227 | 286 | 325 | 250 | 400 | 340 | 655 | 280 | 22 | 200 | 150 | 50 | 14 | 54 | 217 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 1500 | 75 | 1990 | 218 | 1345 | 286 | 325 | 250 | 580 | 530 | 826 | 426 | 776 | 22 | 800 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
