100Е32А
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 100Е32А | 60 | 30 | 70 | 2,8 | 37 | 320 | 90 | 27 | 79 | 3,7 | 110 | 22 | 75 | 4,5 |

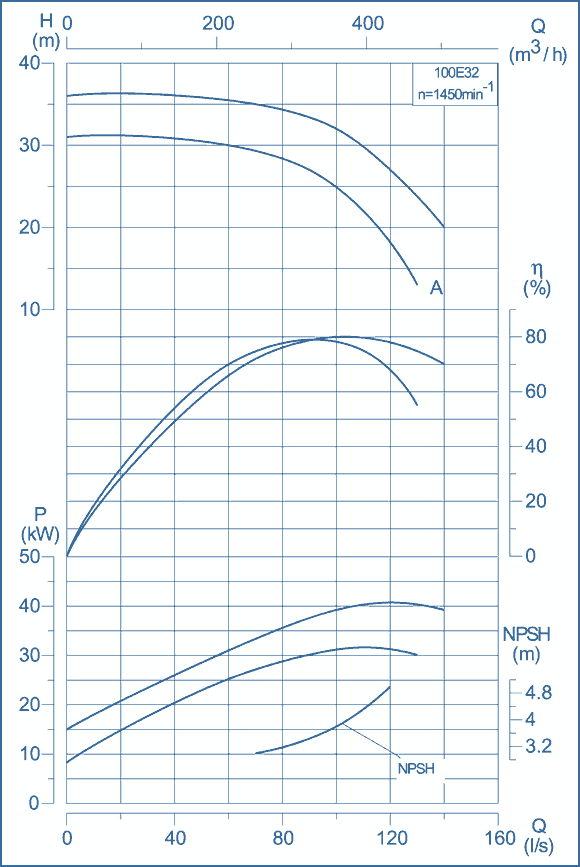

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | ВС | BD | BE | НА | НВ | а | Ds | Dd | d | s | t | Weight, kg | 820 | 206 | 328 | 255 | 118 | 260 | 380 | 235 | 350 | 300 | 629 | 240 | 18 | 200 | 175 | 38 | 10 | 41 | 164 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 1500 | 37 | 1673 | 206 | 710 | 260 | 380 | 235 | 470 | 420 | 695 | 360 | 690 | 14 | 525 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
