100Е20А
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 100Е20А | 65 | 18,5 | 73 | 2,9 | 22 | 260 | 90 | 16 | 80 | 3,6 | 110 | 12,5 | 73 | 4,5 |

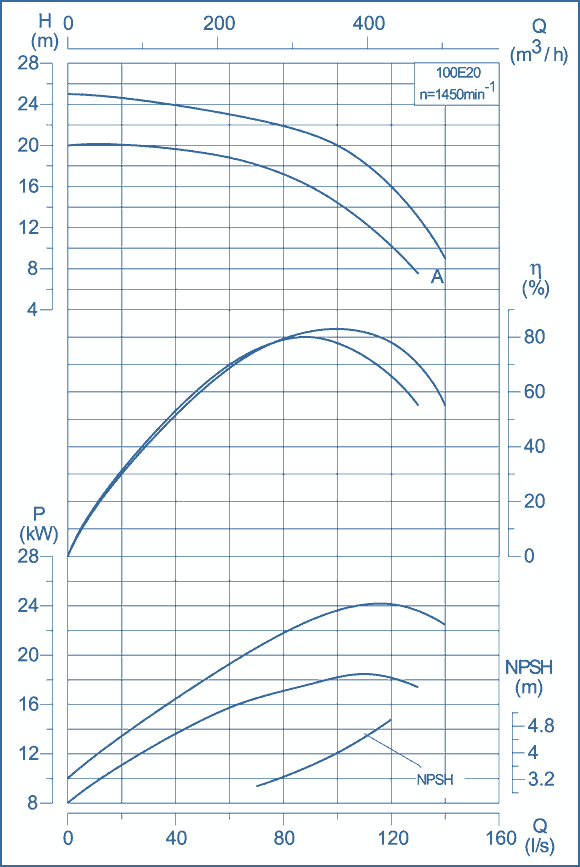

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | ВС | BD | BE | НА | НВ | а | Ds | Dd | d | s | t | Weight, kg | 828 | 203 | 328 | 255 | 118 | 353 | 360 | 230 | 350 | 300 | 576 | 240 | 18 | 200 | 150 | 38 | 10 | 41 | 155 |
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 1500 | 22 | 1566 | 203 | 930 | 353 | 360 | 230 | 370 | 320 | 630 | 320 | 600 | 14 | 395 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
