50Е32-М
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 50Е32-М | 32 | 34,5 | 73 | 3,5 | 30 | 322 | 50 | 32 | 80 | 4 | 62 | 28 | 75 | 5 |

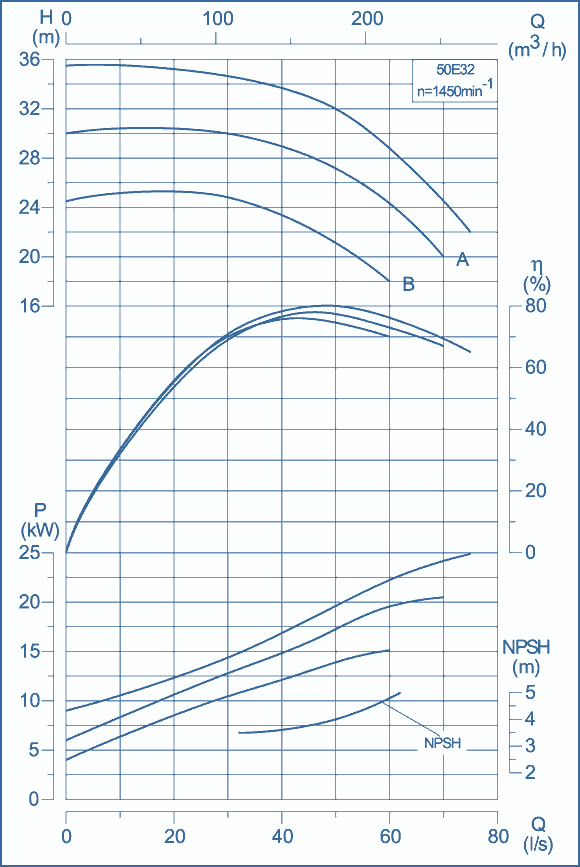

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | LD | BA | BB | BC | BD | BE | HA | HB | HC | a | Ds | Dd | Weight, kg | 1500 | 30 | 980 | 170 | 360 | 305 | 225 | 303 | 200 | 390 | 318 | 510 | 200 | 480 | 19 | 150 | 100 | 305 |

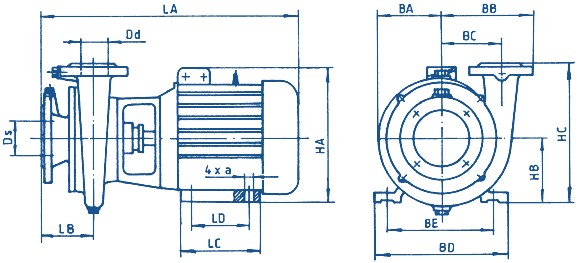

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
