50Е20А
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 50Е20А | 30 | 18 | 74 | 2,8 | 11 | 240 | 44 | 15,5 | 79 | 3,6 | 54 | 12 | 72 | 4,3 |

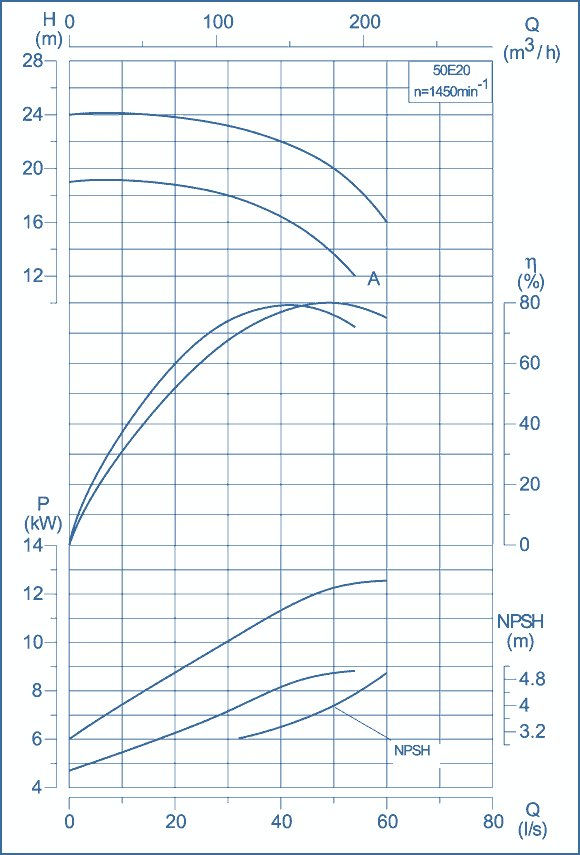

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | ВС | BD | BE | НА | НВ | а | Ds | Dd | d | s | t | Weight, kg | 650 | 211 | 265 | 205 | 94 | 205 | 283 | 180 | 300 | 260 | 450 | 200 | 18 | 175 | 100 | 30 | 10 | 33 | 98 |

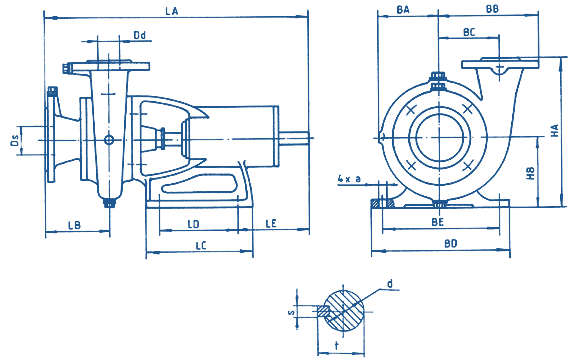

DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 1500 | 11 | 1308 | 211 | 810 | 205 | 282,5 | 180 | 310 | 260 | 530 | 280 | 530 | 14 | 253 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
