E/125-315
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | E/125-315 | 50 | 34 | 68 | 2,1 | 37 | 343 | 69 | 32 | 78 | 2,6 | 89 | 28 | 77 | 3,5 |

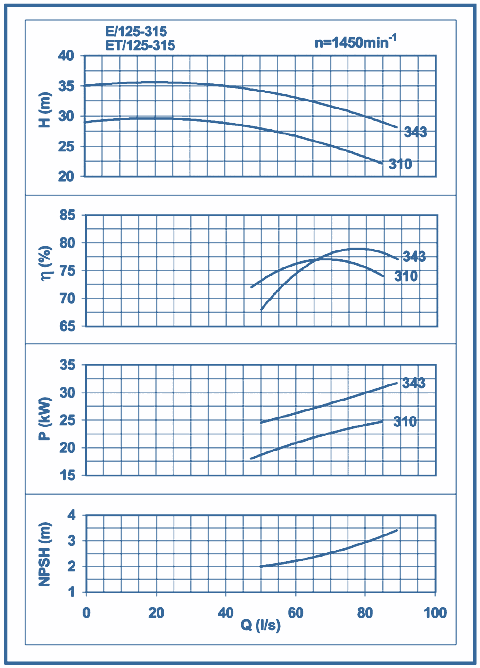

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 37 | 1659 | 140 | 530 | 140 | 1394 | 448 | 475 | 520 | 735 | 400 | 755 | 18 | 150 | 125 | 161 | 526 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
