Vipom's pumps
pumps


100Е50А


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
D2
mm
100Е50А

60

60

68

360

90

42

76

115

56

71

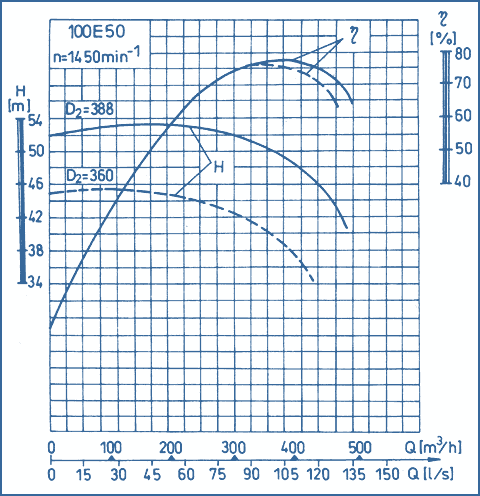

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

ВС

BD

BE

HA

HB

D

К

О

d

Z

D

К

О

d

Z

Weight, kg

942

218

187

310

390

675

260

340

400

630

280

200

280

315

18

8

150

225

260

18

8

234


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions
