Vipom's pumps
pumps


100Е32


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
D2
mm
100Е32

70

35

72

345

100

32

80

120

27

76

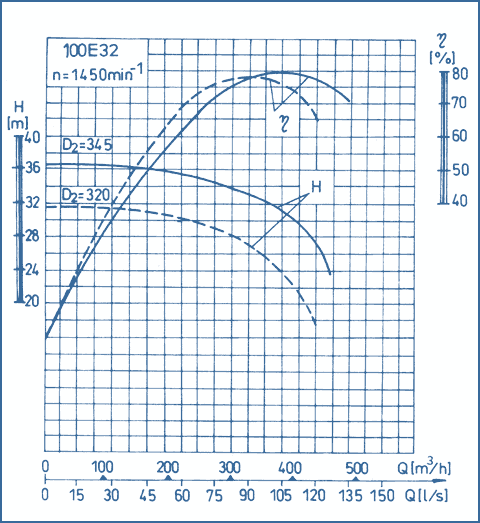

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

ВС

BD

BE

HA

HB

D

К

О

d

Z

D

К

О

d

Z

Weight, kg

820

206

175

255

328

640

235

300

350

570

240

200

280

315

18

8

175

255

290

18

8

173


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions
