Vipom's pumps
pumps


100Е20


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
D2
mm
100Е20

70

22,5

75

280

100

20

83

120

16

78

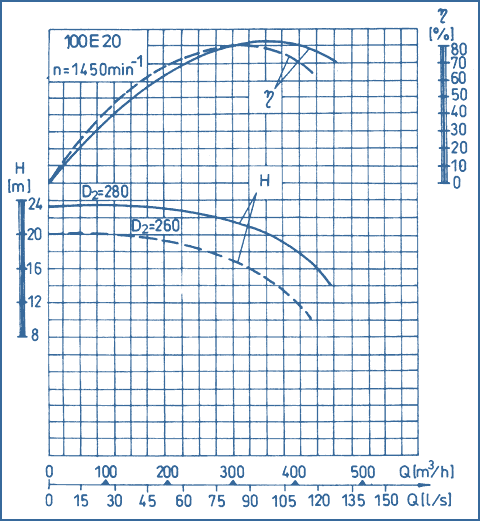

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

ВС

BD

BE

HA

HB

D

К

О

d

Z

D

К

О

d

Z

Weight, kg

828

203

185

255

328

613

230

300

350

520

240

200

280

315

18

8

150

225

260

18

8

165


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions
