Vipom's pumps
pumps


100Е12


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
D2
mm
100Е12

70

14,8

71

250

100

12

81

120

9

77

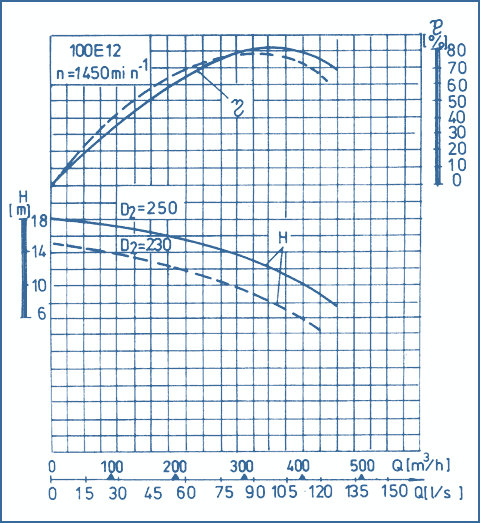

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

ВС

BD

BE

HA

HB

D

К

О

d

Z

D

К

О

d

Z

Weight, kg

830

208

184,5

255

328

641

230

300

350

480

240

200

280

315

18

8

175

255

290

18

8

177


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions
