Vipom's pumps
pumps


50Е20А


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
D2
mm
50Е20А

30

18

74

240

44

15,5

79

54

12

72

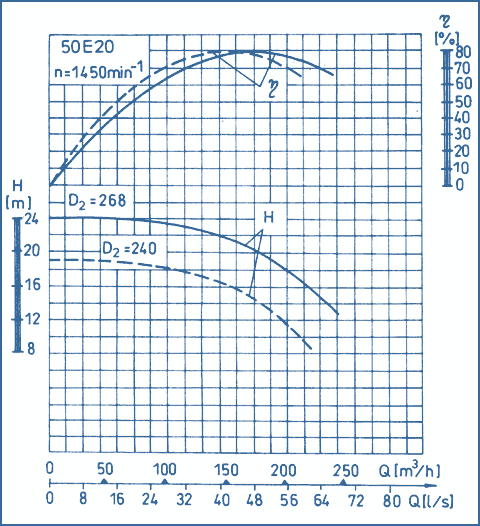

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

ВС

BD

BE

HA

HB

D

К

О

d

Z

D

К

О

d

Z

Weight, kg

650

210

141

205

265

488

180

260

300

450

200

175

225

290

18

8

100

170

205

18

4

106


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions
