Vipom's pumps
pumps


50Е12


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
D2
mm
50Е12

32

14

69

225

50

12

80

60

9,5

71

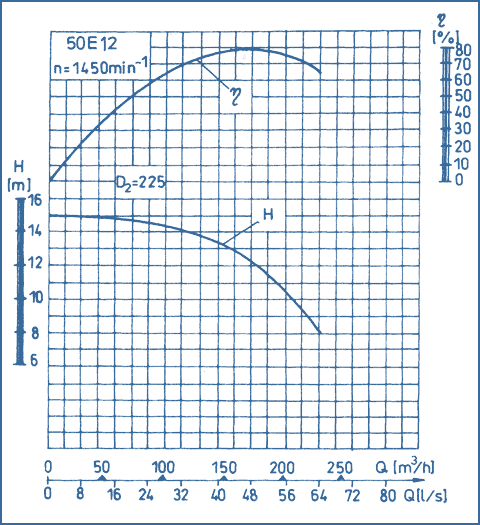

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

ВС

BD

BE

HA

HB

D

К

О

d

Z

D

К

О

d

Z

Weight, kg

570

134

137

205

265

506

184

260

300

400

200

150

225

260

16

8

125

200

235

18

8

97


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions
