E-B/65-250
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | E-B/65-250 | 7,5 | 15,5 | 56 | 1 | 4 | 220 | 12,5 | 14,5 | 65 | 1,4 | 16 | 13,5 | 64 | 2,5 |

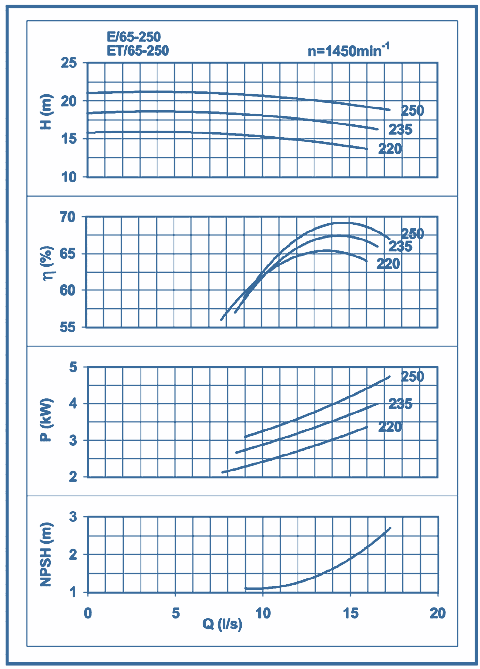

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 4 | 1087 | 100 | 470 | 140 | 989 | 220 | 360 | 410 | 490 | 340 | 590 | 18 | 80 | 65 | 45 | 161 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
