550D50
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 550D50 | 400 | 54 | 83 | 8 | 315 | 460 | 550 | 50 | 87 | 9 | 400 | 600 | 48 | 85 | 10 | 400 |

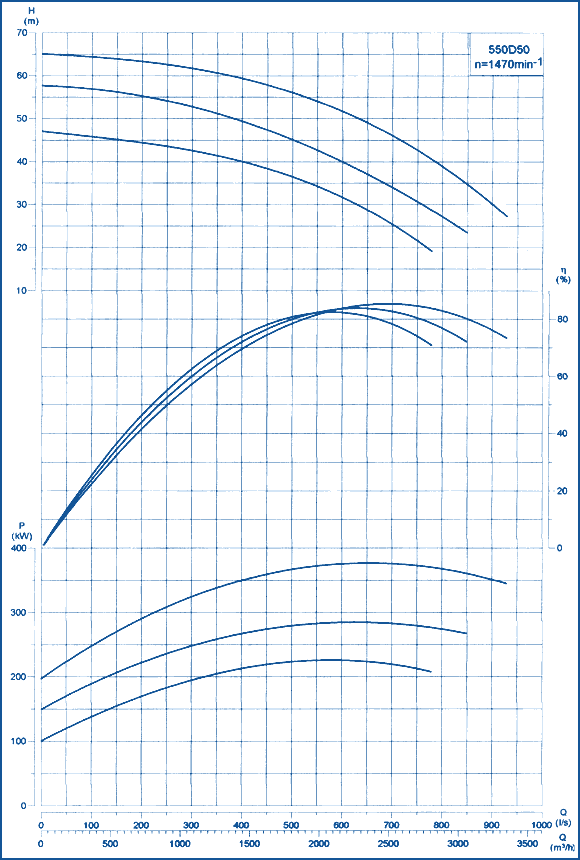

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 550D50 | 1293 | 713 | 780 | 660 | 420 | 780 | 660 | 420 | 1350 | 500 | 800 | 600 | 300 | 160 | 1358 | 760 | 460 | 440 | 35 | 500 | 400 | 55 | 16 | 59 | 1539 |
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 550D50 | 400 | 2840 | 800 | 900 | 1130 | 35 | 890 | 800 | 190 | 855 | 360 | 35 | 27 | 3482 | 550D50,A | 315 | 2781 | 815 | 710 | 965 | 28 | 775 | 610 | 145 | 755 | 405 | 35 | 27 | 2971 |

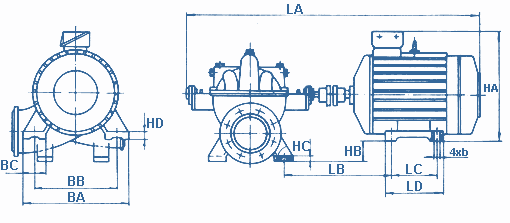

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
