500D140B
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 500D140B | 350 | 140 | 74 | 5 | 800 | 645 | 400 | 135 | 78 | 6 | 500 | 116 | 76 | 8 |

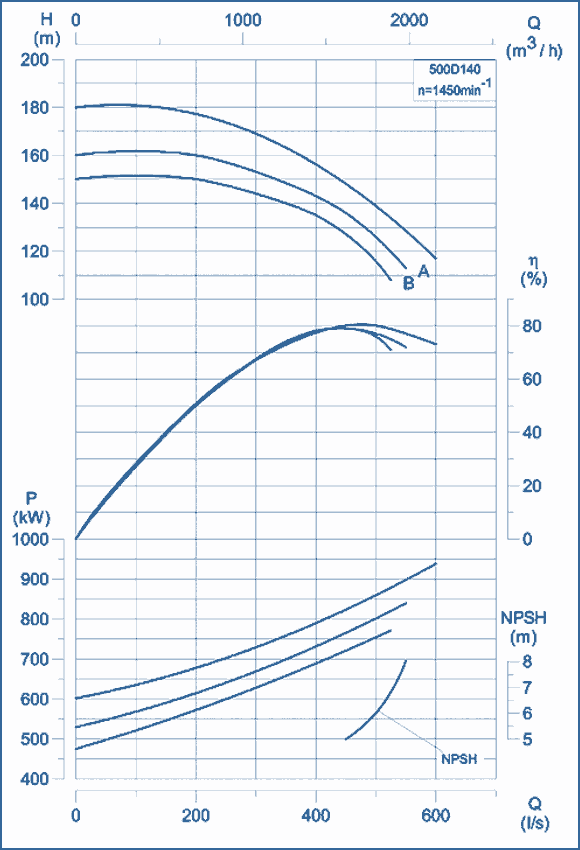

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 500D140B  | 1480 | 810 | 600 | 480 | 260 | 600 | 480 | 260 | 1240 | 540 | 800 | 600 | - | 225 | 1115 | 635 | 350 | 433 | 35 | 350 | 250 | 90 | 25 | 95 | 1355 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 500D140A,B | 800 | 3173 | 1122 | 900 | 1250 | 35 | 1035 | 900 | 230 | 985 | 185 | 27 | 32 | 4692 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
