450D90B
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 450D90B | 280 | 72 | 70 | 5,6 | 400 | 480 | 420 | 63 | 78 | 8 | 520 | 50 | 70 | 13 |

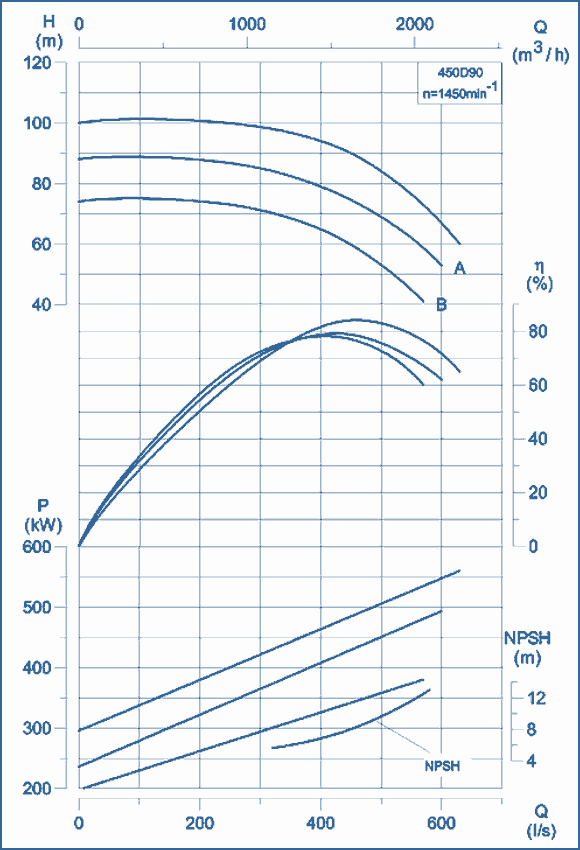

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 450D90B | 1402 | 805 | 600 | 460 | 260 | 600 | 460 | 260 | 1330 | 630 | 900 | 700 | 350 | 170 | 1095 | 650 | 350 | 300 | 35 | 400 | 300 | 85 | 25 | 90 | 1200 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 450Д90Б | 400 | 2895 | 1007 | 800 | 1055 | 28 | 775 | 610 | 145 | 755 | 295 | 35 | 27 | 2868 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
