450D32
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 450D32 | 330 | 38 | 76 | 5,5 | 200 | 386 | 450 | 32 | 85 | 7 | 540 | 23 | 77 | 9,2 |

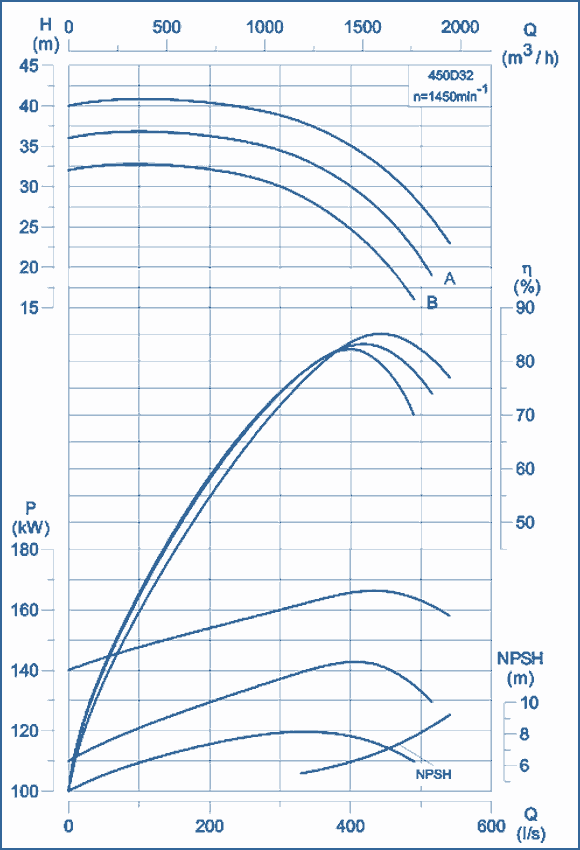

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 450D32 | 1180 | 650 | 700 | 540 | 280 | 700 | 540 | 280 | 1050 | 450 | 810 | 630 | 360 | 160 | 1120 | 600 | 400 | 250 | 34 | 400 | 350 | 55 | 16 | 59 | 850 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 450D32 | 200 | 2508 | 774 | 508 | 575 | 28 | 630 | 508 | 120 | 765 | 285 | 32 | 45 | 2102 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
