Vipom's pumps
pumps


350D140B

model of pump 350D140B

TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
NPSH
m
P
kW
D2
mm
350D140B

250

140

78

5

500

630

350

130

84

6

630

475

110

77

8

800

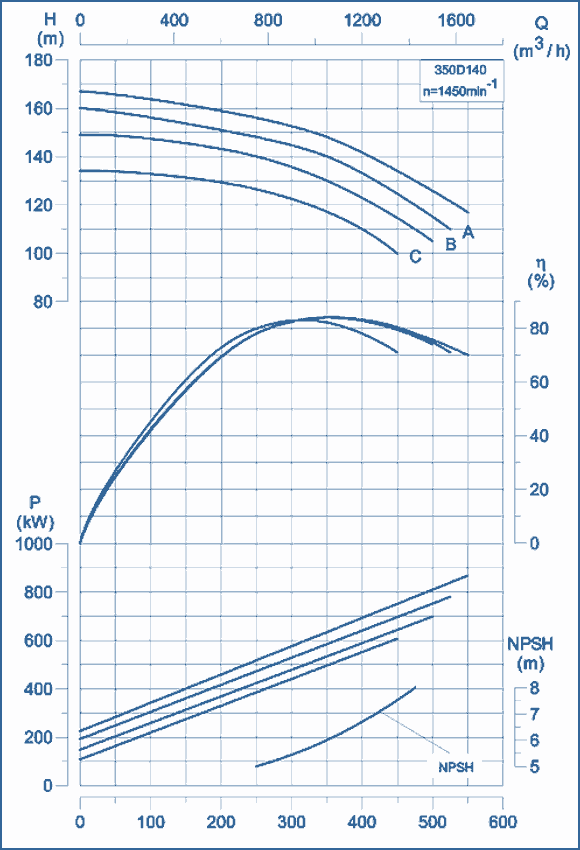

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

LA

LB

LC

LD

LE

LF

LG

LH

BA

BB

ВС

BD

BE

BF

НА

НВ

НС

HD

а

Ds

Dd

d

s

t

Weight, kg

350D140B

1480

810

600

480

260

600

480

260

1240

540

800

600

300

160

1115

635

350

433

32

350

200

85

22

90

1333


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

LD

b

BA

BB

ВС

HA

HB

HC

HD

Weight, kg

350D140,A,B

800

3173

1012

900

1250

35

1035

900

30

985

185

50

32

4683

350D140,A,B,C

630

3128

988

1000

1230

35

890

800

270

855

235

50

27

3695

350D140B,C

500

3028

988

900

1130

35

890

800

270

855

235

50

27

3330


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
