350D125A (VD 1250- 125A)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 350D125A (VD 1250- 125A) | 220 | 110 | 71 | 5 | 500 | 610 | 320 | 102 | 76 | 5,5 | 400 | 90 | 74 | 6,5 |

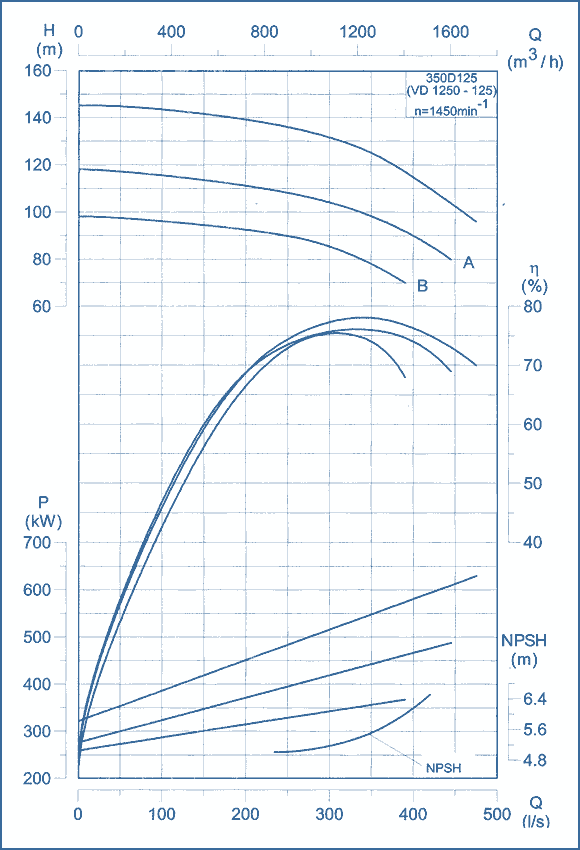

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 350D125A (VD 1250- 125A) | 1420 | 782 | 440 | 360 | 180 | 710 | 630 | 450 | 1050 | 450 | 710 | 630 | 315 | 155 | 970 | 530 | 300 | 400 | 35 | 350 | 200 | 80 | 22 | 85 | 1300 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 350D125A(VD1250-125A) | 500 | 2928 | 1200 | 900 | 1130 | 35 | 890 | 800 | 270 | 855 | 130 | 40 | 27 | 3197 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
