300D70
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 300D70 | 250 | 72 | 82 | 4,5 | 250 | 460 | 300 | 69 | 86 | 5 | 250 | 350 | 64 | 85 | 6,4 | 315 |

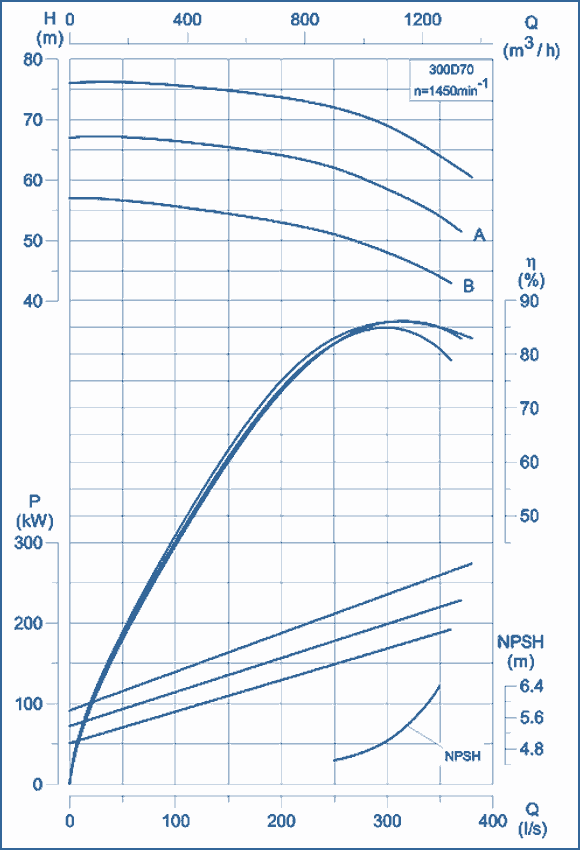

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 300D70 | 1119 | 628 | 720 | 600 | 400 | 720 | 600 | 400 | 1392 | 770 | 790 | 600 | 300 | 160 | 1040 | 600 | 335 | 435 | 35 | 350 | 300 | 55 | 16 | 59 | 1034 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 300D70 | 315 | 2522 | 760 | 710 | 965 | 28 | 775 | 610 | 220 | 755 | 245 | 40 | 27 | 2466 | 300D70,A | 250 | 2442 | 760 | 630 | 885 | 28 | 775 | 610 | 220 | 755 | 245 | 40 | 27 | 2322 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
