220D55B
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 220D55B | 130 | 43 | 75 | 3,6 | 110 | 365 | 190 | 37 | 80 | 4,5 | 230 | 29 | 73 | 8 |

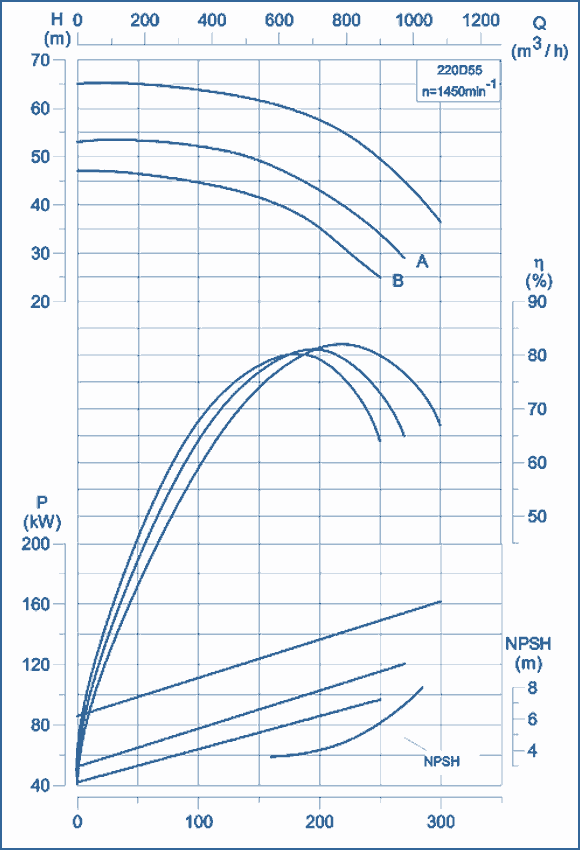

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 220D55B | 1060 | 590 | 600 | 460 | 120 | 600 | 460 | 120 | 1180 | 600 | 780 | 620 | 310 | 120 | 915 | 540 | 380 | 265 | 30 | 300 | 250 | 55 | 16 | 59 | 695 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 220D55B | 110 | 2248 | 754 | 457 | 527 | 28 | 630 | 508 | 120 | 765 | 225 | 30 | 45 | 1497 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
