220D36B
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 220D36B | 140 | 33,5 | 73 | 3 | 75 | 330 | 200 | 28,5 | 81 | 4 | 260 | 20 | 71 | 6 |

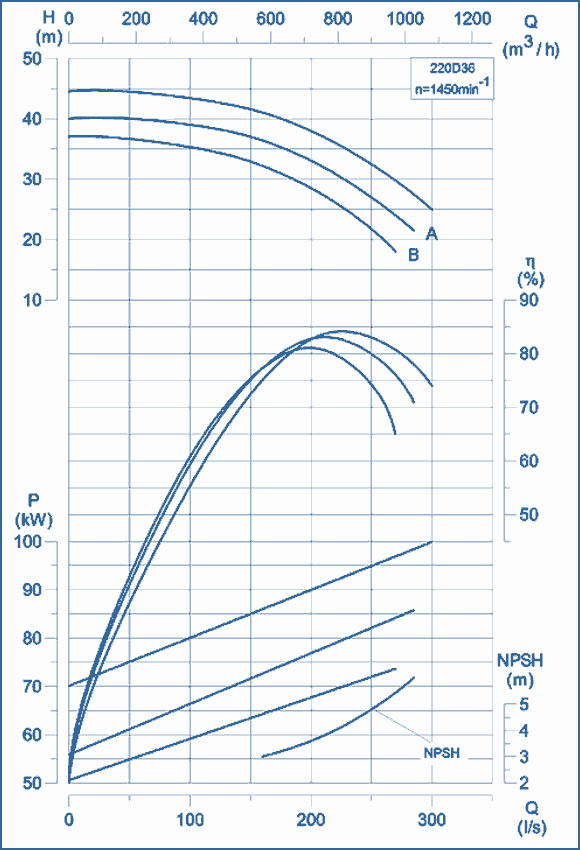

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 220D36B | 965 | 520 | 440 | 320 | 120 | 440 | 320 | 120 | 950 | 350 | 625 | 475 | 300 | 150 | 720 | 470 | 265 | 290 | 30 | 300 | 250 | 45 | 14 | 48,5 | 540 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 220D36B | 75 | 2015 | 698 | 419 | 480 | 24 | 556 | 457 | 100 | 680 | 190 | 25 | 40 | 1060 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
