220D20

model of pump 220D20

TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
NPSH
m
P
kW
D2
mm
220D20

170

23

77

4,2

55

300

220

20

84

4,5

270

14,5

76

7

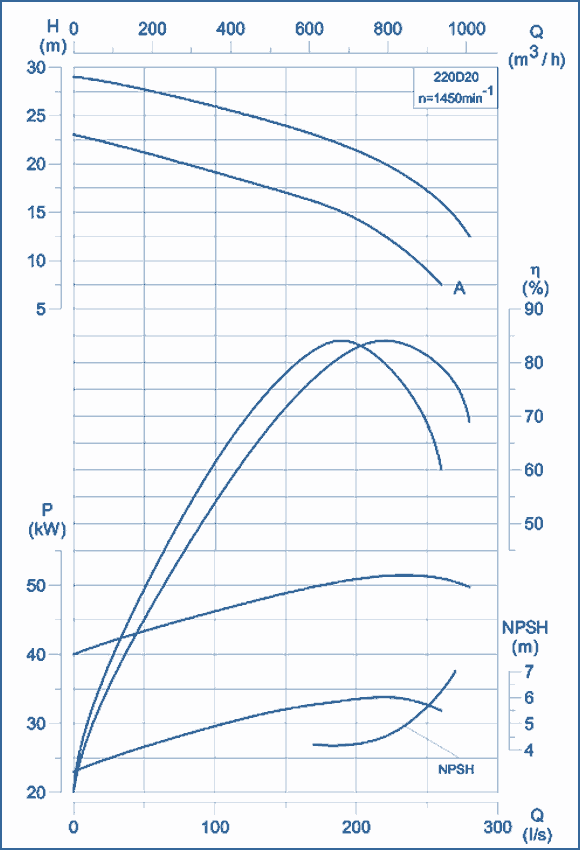

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

LA

LB

LC

LD

LE

LF

LG

LH

BA

BB

ВС

BD

BE

BF

НА

НВ

НС

HD

а

Ds

Dd

d

s

t

Weight, kg

220D20

940

510

480

380

120

480

380

120

840

540

560

420

300

150

865

525

278

290

30

300

250

45

14

48,5

530


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

LD

b

BA

BB

ВС

HA

HB

HC

HD

Weight, kg

220D20

55

1848

636

419

405

24

500

406

95

625

275

30

36

972


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
