140D70A
TECHNICAL PARAMETERS
n=1450 min-1 |
Pump Type | Q l/s | H m | η % | NPSH m | P kW | D2 mm | 140D70A | 100 | 63 | 74 | 3,6 | 132 | 435 | 130 | 58 | 76 | 4,3 | 160 | 50 | 70 | 7,2 |

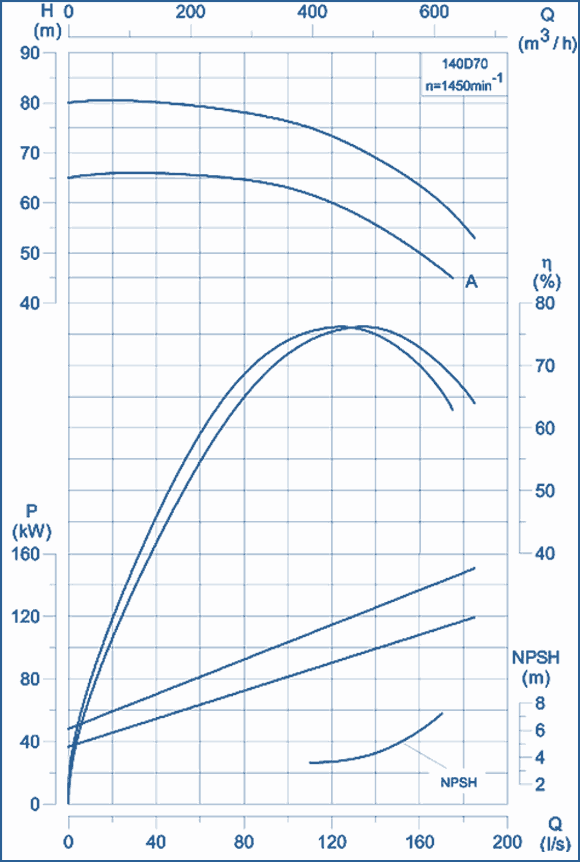

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 140D70A | 1033 | 583 | 400 | 320 | 100 | 400 | 320 | 100 | 950 | 500 | 680 | 560 | 280 | 140 | 803 | 500 | 305 | 225 | 30 | 250 | 150 | 55 | 16 | 59 | 518 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 140D70,A | 132 | 2330 | 817 | 508 | 578 | 28 | 630 | 508 | 120 | 765 | 185 | 30 | 45 | 1510 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
