140D40A
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 140D40A | 95 | 37 | 72 | 3 | 75 | 340 | 135 | 33 | 80 | 4 | 175 | 26 | 73 | 7 |

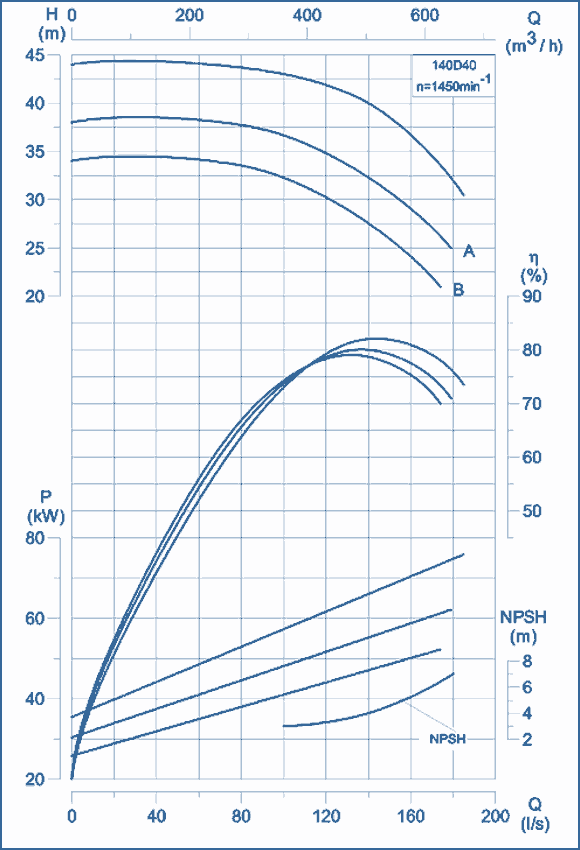

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 140D40A | 895 | 480 | 520 | 380 | 140 | 520 | 380 | 140 | 940 | 440 | 700 | 640 | 270 | 130 | 780 | 460 | 225 | 320 | 30 | 250 | 200 | 45 | 14 | 48,5 | 450 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 140D40A | 75 | 1945 | 628 | 279 | 320 | 24 | 556 | 457 | 100 | 680 | 180 | 30 | 40 | 972 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
