90D50B (VD 320 - 50B)

pump 90D50B (VD 320 - 50B)

TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
NPSH
m
P
kW
D2
mm
90D50B (VD 320 - 50B)

51

39

75

3

45

340

74

34

76

4

90

29

73

8


PERFORMANCE CURVES

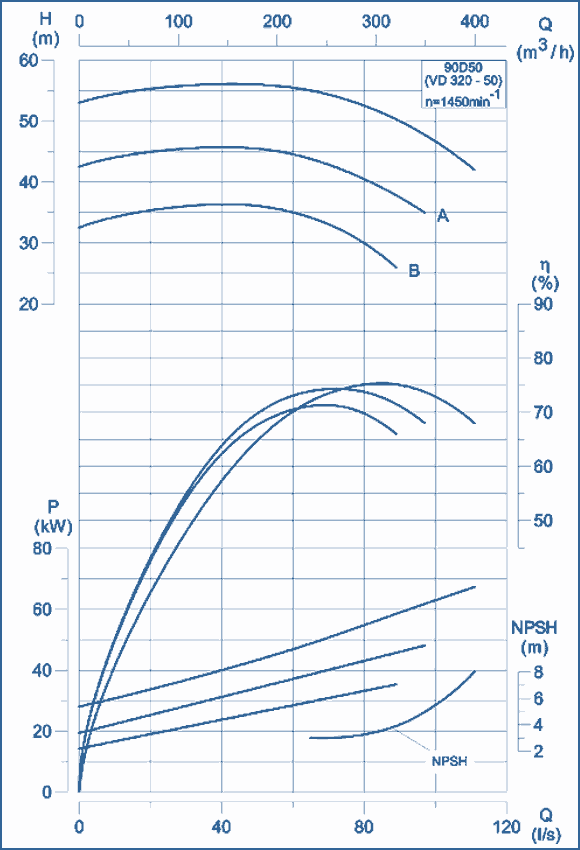

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

LA

LB

LC

LD

LE

LF

LG

LH

BA

BB

ВС

BD

BE

BF

НА

НВ

НС

HD

а

Ds

Dd

d

s

t

Weight, kg

90D50B (VD 320 - 50B)

823

458

400

320

-

370

320

-

966

492

610

510

255

130

710

400

188

260

22

200

150

32

10

35

336


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

LD

b

BA

BB

ВС

HA

HB

HC

HD

Weight, kg

90D50B (VD 320 - 50B)

45

1644

581

305

375

19

395

318

90

485

200

25

25

647


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
