55D36 (VD 200 - 36)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 55D36 (VD 200 - 36) | 40 | 43 | 72 | 3 | 37 | 350 | 55 | 42 | 80 | 3,5 | 80 | 38 | 78 | 6 |

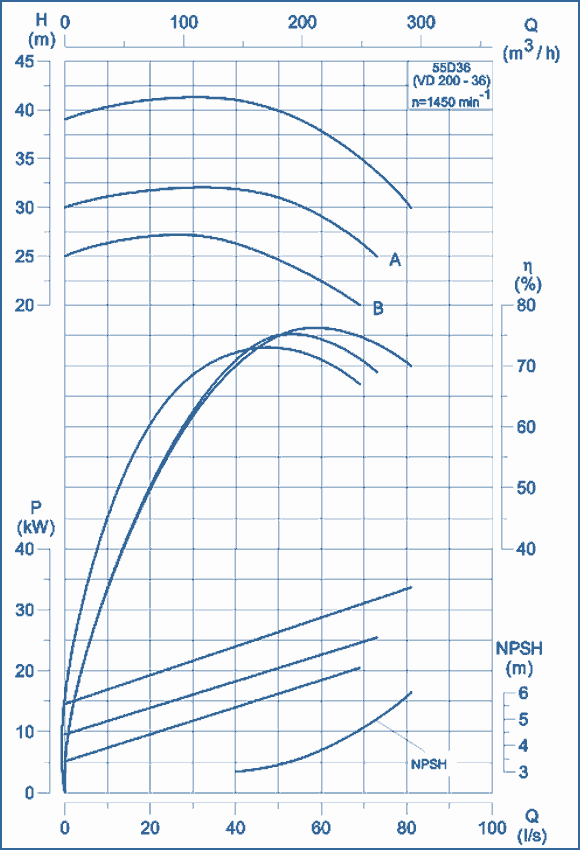

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 55D36 (VD 200 - 36) | 823 | 458 | 340 | 260 | - | 370 | 320 | - | 800 | 373 | 510 | 430 | 215 | 130 | 620 | 350 | 162 | 224 | 22 | 150 | 125 | 32 | 10 | 35 | 240 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 55D36 (VD 200 - 36) | 37 | 1598 | 611 | 267 | 337 | 19 | 395 | 318 | 90 | 485 | 150 | 25 | 25 | 552 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
