140MTR50.9
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 140MTR50.9 | 100 | 513 | 71 | 2 | 1000 | 435 | 140 | 450 | 78 | 3 | 180 | 333 | 69 | 4 |

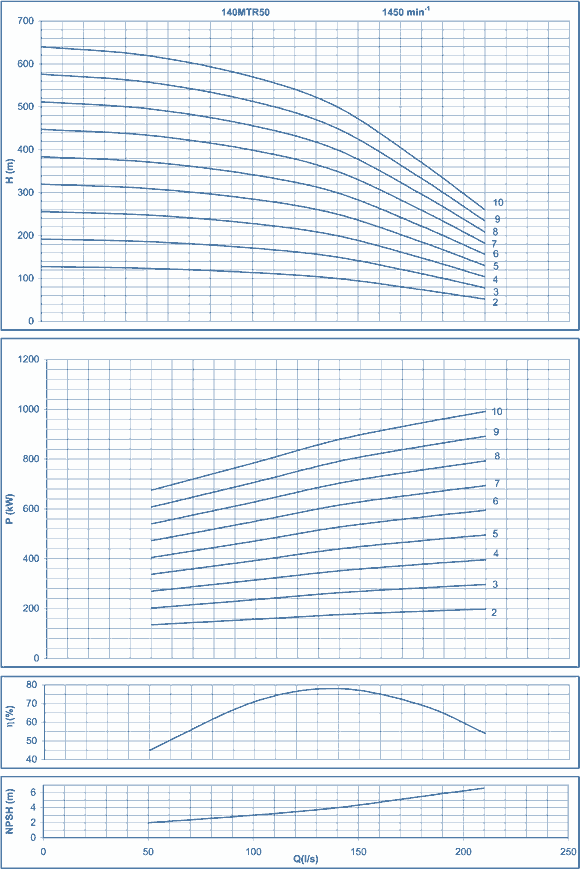

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | Weight, kg | 140MTR50.9 | 672 | 1519 | 1369 | 1599 | 747 | 2789 | 3505 |

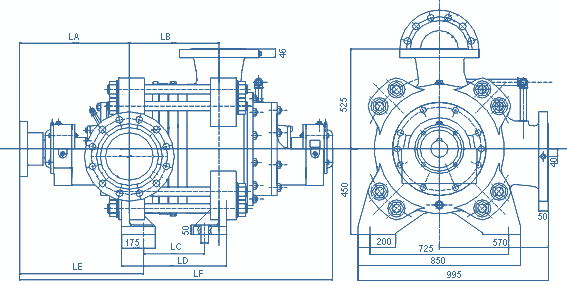

DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Unit Type | Р, kW | LA | LB | LC | LD | BA | BB | BC | HA | HB | HC | Weight, kg | 140MTR50.9 | 1000 | 4635 | 598 | 1519 | 747 | 570 | 1150 | 1250 | 1275 | 740 | 1265 | 6935 |

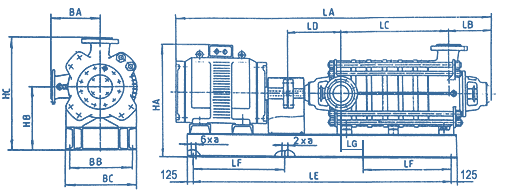

DIMENSIONAL DRAWING OF THE PUMP UNIT

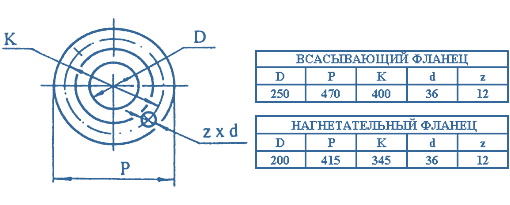

Flange Dimensions
|
|
|
