110MTR45.3
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 110MTR45.3 | 80 | 153 | 72 | 5 | 250 | 410 | 111 | 135 | 77 | 6 | 140 | 97,5 | 68 | 7 |

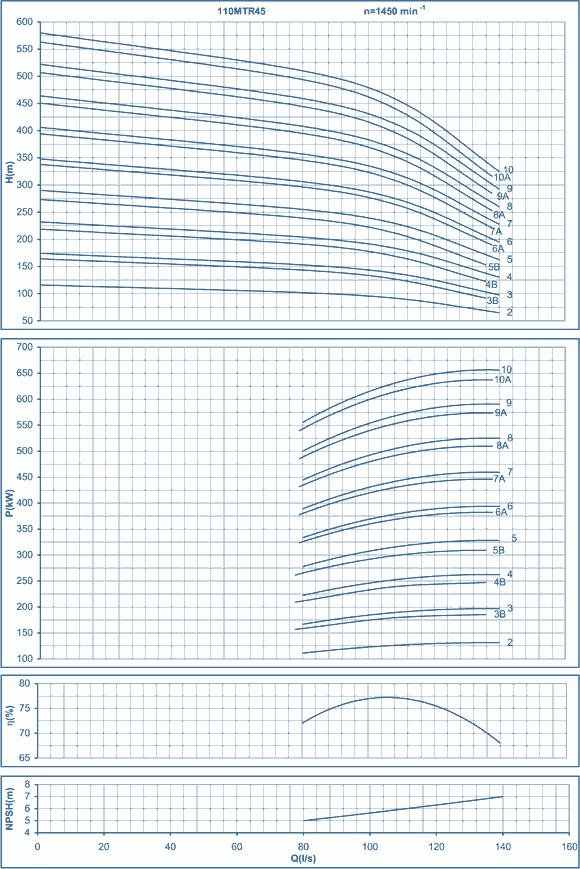

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | LF | LG | a | BA | BB | ВС | HA | HB | HC | d | s | t | Ds | Dd | Weight, kg | 1687 | 549 | 613 | 600 | 463 | 7693 | --- | 40 | 540 | 615 | 735 | 980 | 425 | 50 | 90 | 25 | 95 | 250 | 200 | 1280 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITР, kW | LA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | Weight, kg | 250 | 3336 | 549 | 613 | 527 | 2296 | 1160 | 40 | 540 | 730 | 800 | 1135 | 710 | 1265 | 3548 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
