70MTR32.5B
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 70MTR32.5B | 48,3 | 170 | 66 | 3 | 160 | 334 | 67 | 149 | 75 | 4 | 82 | 121 | 70 | 5 |

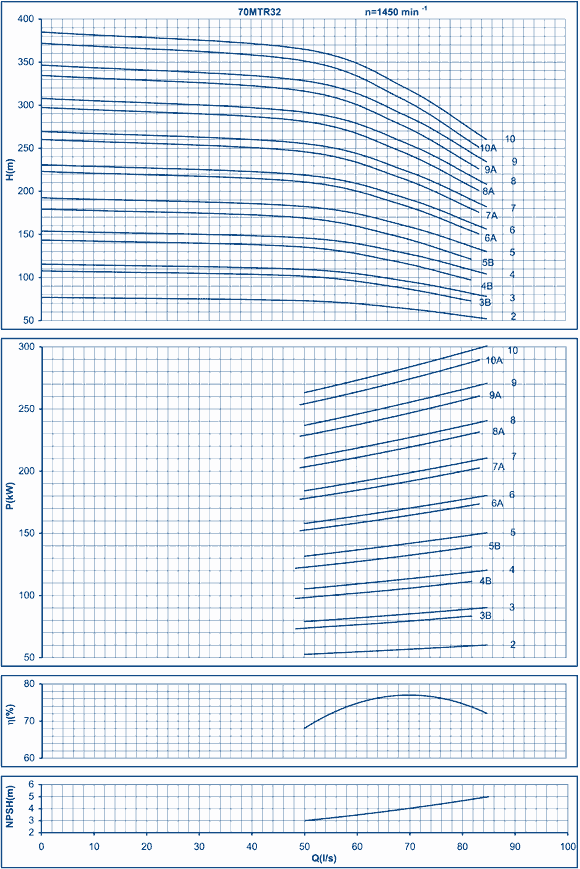

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | LF | LG | a | BA | BB | ВС | HA | HB | HC | d | s | t | Ds | Dd | Weight, kg | 1683 | 482 | 754 | 517 | 638 | 788 | --- | 27 | 400 | 530 | 600 | 750 | 350 | 35 | 55 | 16 | 59 | 200 | 150 | 1071 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITР, kW | LA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | Weight, kg | 160 | 3008 | 482 | 753 | 449 | 2105 | 1105 | 30 | 400 | 580 | 650 | 1115 | 665 | 1065 | 2438 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
