45MTR45.8A
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 45MTR45.8A | 34,2 | 360 | 66 | 3 | 250 | 354 | 43,5 | 344 | 74 | 4 | 53,8 | 306 | 69 | 5 |

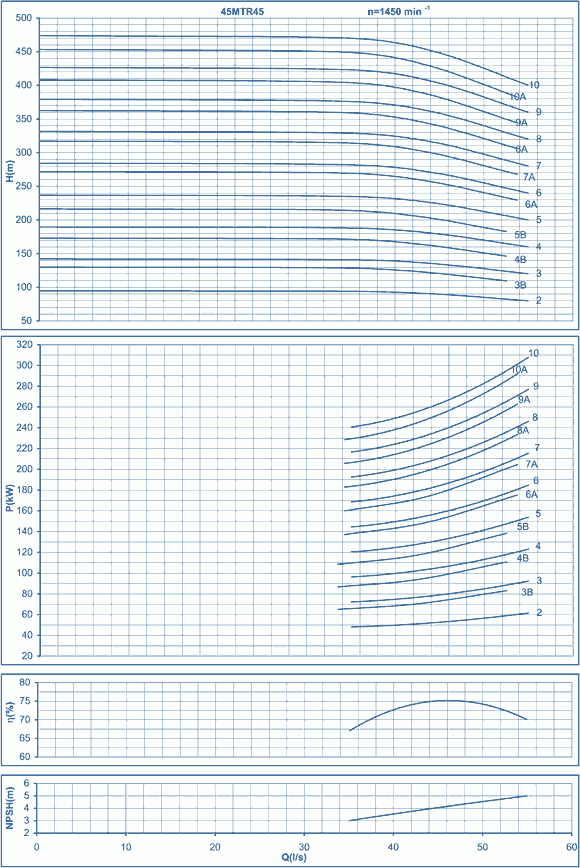

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | LF | LG | a | BA | BB | ВС | HA | HB | HC | d | s | t | Ds | Dd | Weight, kg | 2110 | 351 | 1287 | 522 | 1187 | 1357 | 635 | 33 | 440 | 510 | 600 | 780 | 360 | 45 | 65 | 20 | 69,5 | 150 | 125 | 1722 |

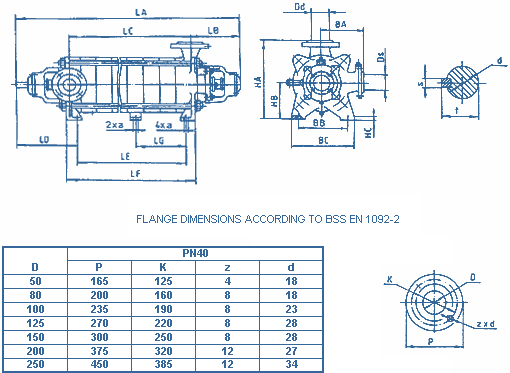

DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITР, kW | LA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | Weight, kg | 250 | 3435 | 351 | 1287 | 474 | 2930 | 980 | 30 | 440 | 730 | 800 | 1035 | 635 | 1055 | 3415 |

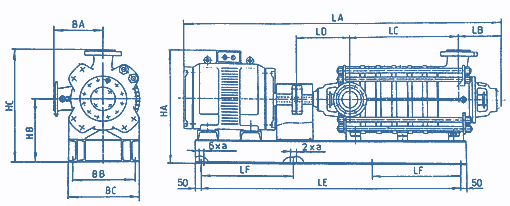

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
