E/50-200
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | E/50-200 | 5,5 | 13,5 | 56 | 0,9 | 2,2 | 200 | 8,3 | 12,5 | 67 | 1,3 | 10,3 | 11 | 65 | 2,1 |

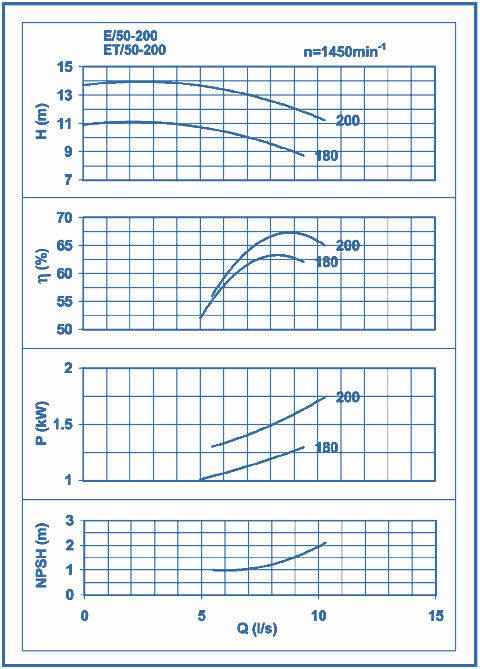

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 2,2 | 937 | 100 | 360 | 100 | 839 | 192 | 280 | 316 | 416 | 276 | 476 | 16 | 65 | 50 | 51 | 107 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
