ET-B/150-400
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | ET-B/150-400 | 69,5 | 44 | 69 | 2,4 | 75 | 375 | 100 | 40 | 76 | 2,7 | 122 | 35 | 74 | 3,7 |

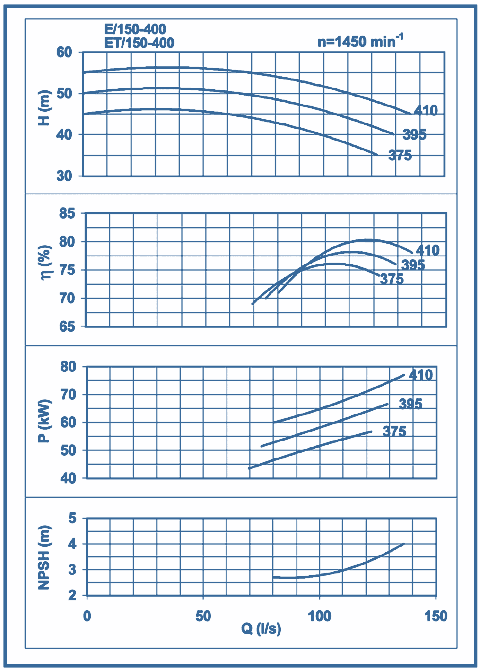

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 75 | 1874 | 160 | 530 | 140 | 1537 | 535 | 540 | 580 | 815 | 415 | 865 | 22 | 200 | 150 | 204 | 764 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
