175D125 (VD630-125)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 175D125 (VD630-125) | 115 | 133 | 64 | 5 | | 590 | 175 | 125 | 71 | 5,5 | 400 | 210 | 118 | 70 | 6,7 | |

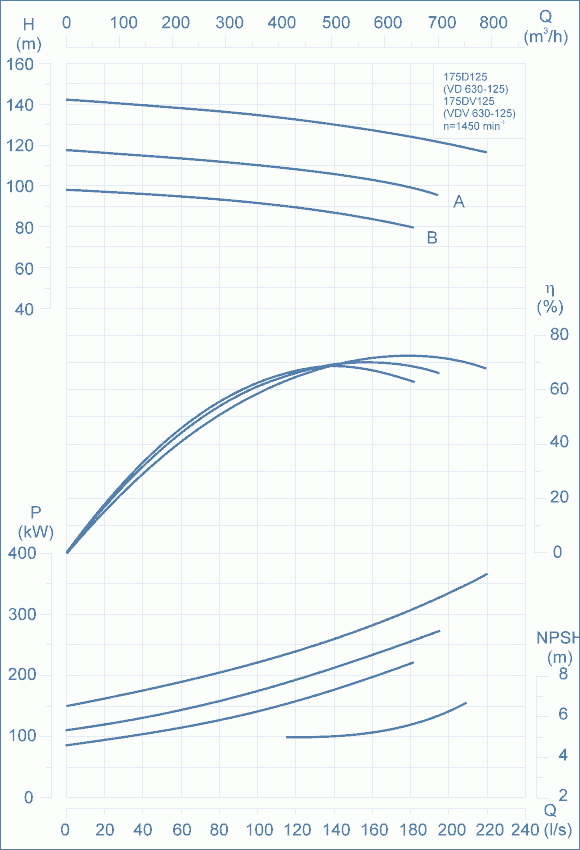

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 175D125(VD630-125) | 1135 | 345 | 370 | 300 | - | 600 | 530 | - | 900 | 400 | 600 | 530 | 265 | 125 | 900 | 470 | 300 | 370 | 28 | 250 | 150 | 60 | 18 | 64 | 668 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 175D125 (VD630-125) | 400 | 2633 | 814 | 800 | 1055 | 28 | 775 | 610 | 145 | 755 | 115 | 30 | 27 | 2263 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
